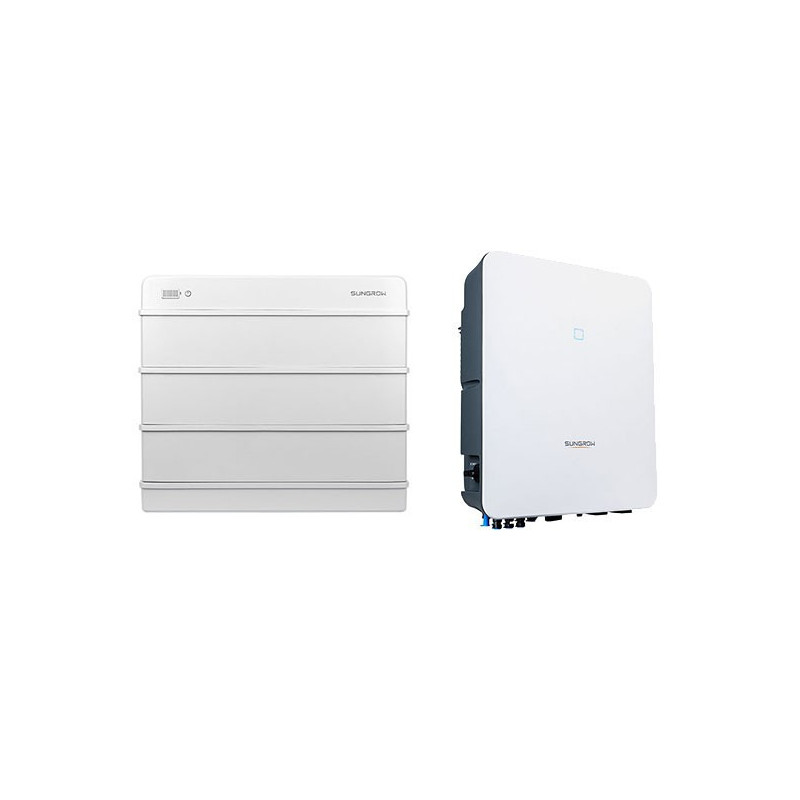

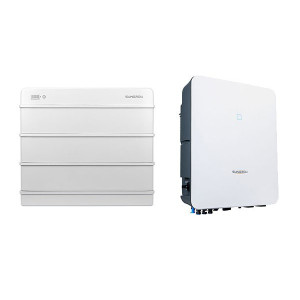

Sungrow SBR096 V13.2 + SH10.0RT-20-V11
  • Sungrow SBR096 V13.2 + SH10.0RT-20-V11

Sungrow SBR096 V13.2 + SH10.0RT-20-V11

0154607
HV-Speichersystem, 9,6 kWh nutzbar, 3-Phase

Dieses Bündel beinhaltet

6.751,80 €
Bruttopreis
Menge
Op voorraad bij onze leverancier (levertijd 5-10 werkdagen)
26 Artikel

Fragen Sie nach dem Produkt über WhatsApp
Artikeldetails
0154607
26 Artikel
Topology transformerless
Start input voltage (V) 250
Max. discharging power (kW) 5.76
Max. input current per MPPT (A). 27,0\/13,5
Number of independent MPPT (pcs) 2
AC nominal power (kW) 10.00
Max. output current (A) 15.20
Max. short circuit current (A) total 54.00
Decibel 30
Max. input current DC (A) total 40.50
Max. input voltage DC (V) 1000.00
Commercial system no
Surge protection AC type 2
Max. AC power (kVA) 10.00
MPP max. voltage range input (V) 950.00
Capacity extendable later yes without restriction
European efficiency (%) 97.90
Display w/o display
Max. generator power DC (kWp) 15.00
Battery voltage High Voltage
Battery cell chemistry LFP
Usable capacity (kWh) 9.60
Max. efficiency (%) 98.40
MPP min. voltage range input (V) 200.00
Integrated DC switch yes
Protection degree IP55
Total number of string inputs 3
Max. nominal charging power (kW) 5.76
Surge protection DC type 2
DC connector type MC4 connectable
Amount connected phases 3
Max. short circuit current per MPPT (A) 36,0\/18,0
