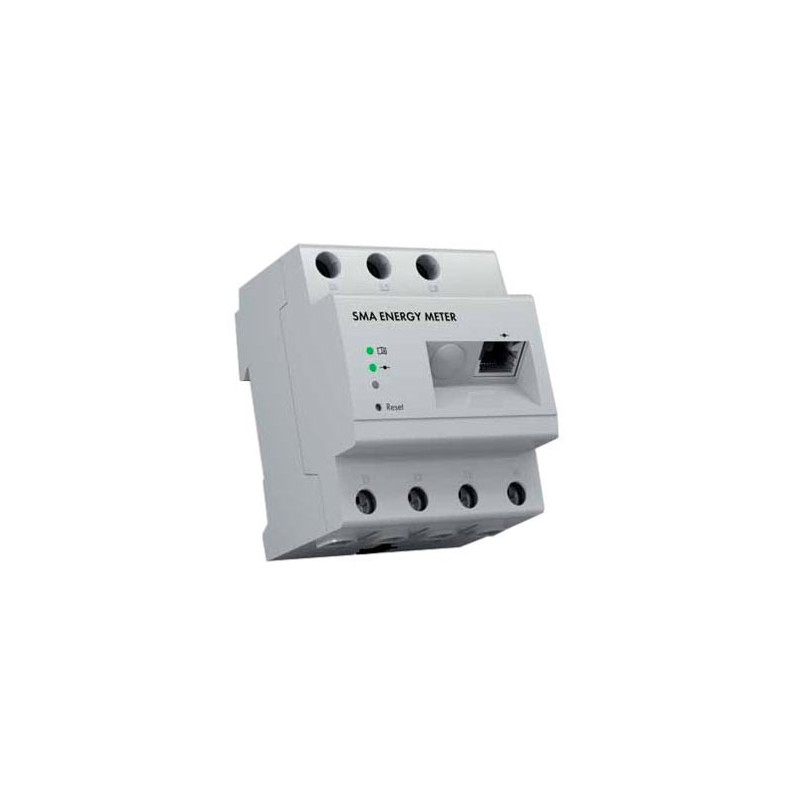

Energy Meter

The SMA E-Meter can be used to record all energy flows quickly and easily. Thanks to bidirectional balancing measurement, it can be used for both grid connection and additional energy generators. Even higher outputs are no problem thanks to optional measuring transformers. With a width of just 4 sub-units, it fits into any distribution board. Communication with the system takes place universally via the regular house network.

Product features:

• Measuring direction: bidirectional

• Input current: <63 A direct (>63 A indirect with additional CTs)

• Mains connection: 230 / 400 V

• Connection phases: 1 / 3

• Communication: Ethernet

• Mounting: top-hat rail

• Protection class: IP2X

• Dimensions: 70 (4 HP) x 88 x 65 mm (L x W x H)

• Weight: 0.3 kg
