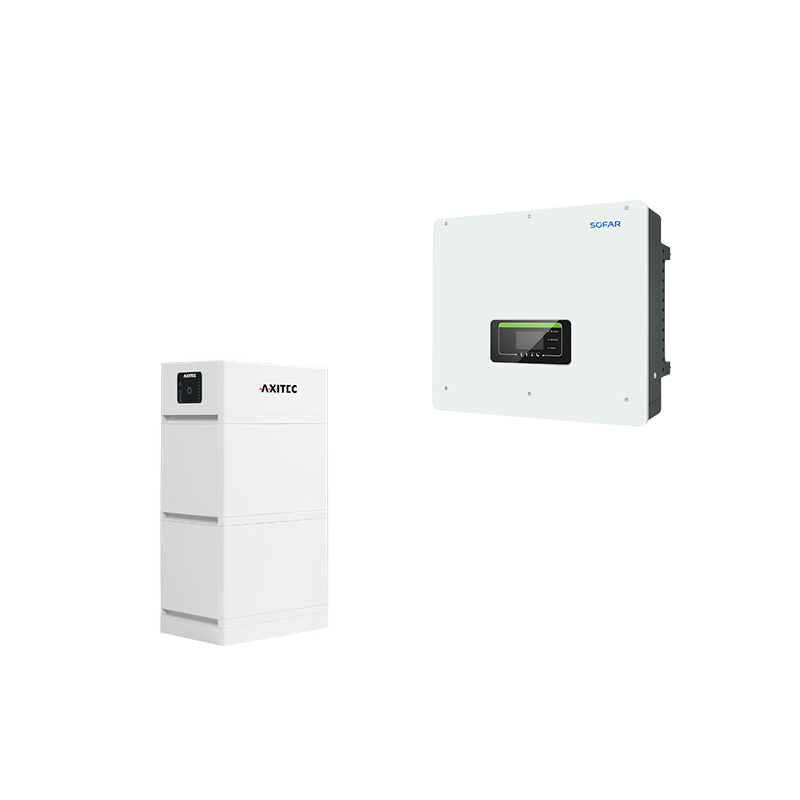

AXIstorage Li SV2 6.7 + HYD 10KTL-3PH hybrid-IV

Sofar Solar has updated the tried and tested HYD KTL-3PH series. Up to 22.5 amps of input current are now possible per string connection. This opens the door to the use of new high-performance modules, including bifacial modules. Integrated AC / DC overvoltage protection and shadow management are still standard features. A direct measuring inline meter and pre-assembled cable sets included in the scope of delivery simplify installation. With power classes from 5 to 20 kW in combination with the proven AXIstorage SV2 storage units, you will always find the right solution for your project.

Product benefits:

? Up to 22.5 amps input current per string connection

? 2 x 25 A battery connections

? Easier backup power supply thanks to built-in N/PE relay

? Modular storage system, flexibly expandable

Product features System:

? AC power: 10 kW

? AC connection: 400 V, 3-phase

? Number of MPPT: 2

? Max. Input current per string: 22.5 A

? Connection plug: MC4

? Interfaces: RS485, Wifi, Bluetooth, Ethernet, 4 x dig. In (FRE)

? Protection class: IP 65

? Cooling: active

? Dimensions: 571 x 515 x 264 mm (HxWxD)

? Weight: 37.0 kg

? Warranty: 5 years

? Included in the scope of delivery: Inline Energy Meter 80A and cable sets for storage tank and meter

Product features Storage unit:

? Battery capacity (usable): 6.7 kWh

? Extension window: 5 years

? Cell chemistry: LFP

? Nominal voltage: 192 V

? Protection class: IP55

? Dimensions: 815 x 450 x 300 mm (HxWxD)

? Weight: BCU 21.0 kg, 2 x storage units 38.0 kg each

Conclusion:

Freshly launched - our Sofar hybrid storage sets. With all the functions you need plus a few more. The second battery connection enables very flexible storage expansion and high charging capacities.

Scope of delivery:

? 1 x Sofar HYD 10 KTL-3PH Hybrid-WR, incl. metre (article 0157280)

? 1 x Axitec AXIstorage Li SV2 BCU (article 0152359)

? 2 x Axitec AXIstorage Li SV2 storage module (article 0150761)
