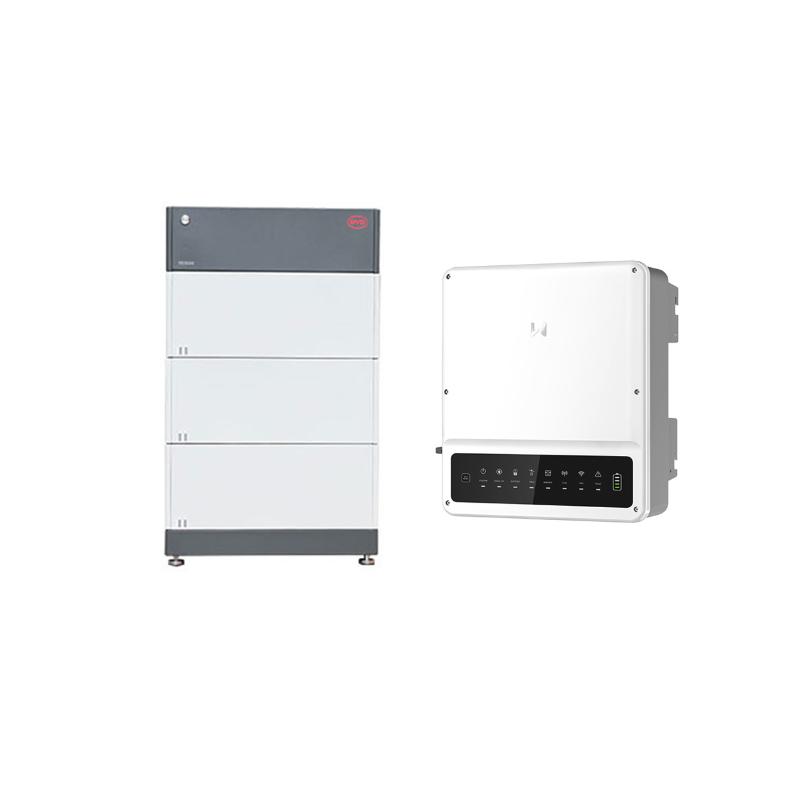

BYD B-Box HVM 8.3 + GW5000N-EH

In addition to a DC input current of 16 amps, the EH series also boasts a true, uninterruptible UPS function for the backup connection. This allows even sensitive loads to operate without worry in any grid situation. Combined with BYD's proven HVM high-voltage series, it's a powerful system for home use. Now with even faster installation thanks to the new BCU 2.0.

Product advantages:

? Emergency power with UPS function < 10 ms

? 16 A input current per MPPT

? Energy meter included with inverter

? Storage can be upgraded at any time up to 22.1 kWh

System product features:

? AC power: 5.0 kW*

? Grid connection: 1-phase

? AC mains voltage: 400 V

? Number of MPPTs: 2

? DC surge protection: Type 2

? Communication: Wi-Fi, Ethernet (optional), RS485, CAN

? Protection class: IP65

? Cooling: passive

? Dimensions: 354 x 433 x 147 mm (W x H x D)

? Weight: 17.0 kg

Storage product features:

? Battery capacity (usable): 8.28 kWh

? Storage type: High-voltage

? Nominal voltage: 153.6 V

? Expansion time window: unlimited

? Number of storage modules in one unit: 3 to 8

? Number of units in parallel: Up to 3

? Cell chemistry: LFP

? Communication: CAN, RS485

? COM ports: RJ45

? BAT ports: MC4

? Cooling: passive

? Protection class: IP55

? Dimensions: 995 x 585 x 298 mm (HxWxD)

? Weight: 129.0 kg

*Limited to 4.6 kVA according to VDE-AR-N 4105

Conclusion:

Good manufacturer ? good combination. Always happy to buy again.

Scope of delivery:

? 1 x GW5000N-EH hybrid inverter, including meter (item 0152932)

? 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

? 3 x BYD HVM storage modules (item 0131400)
