Solis

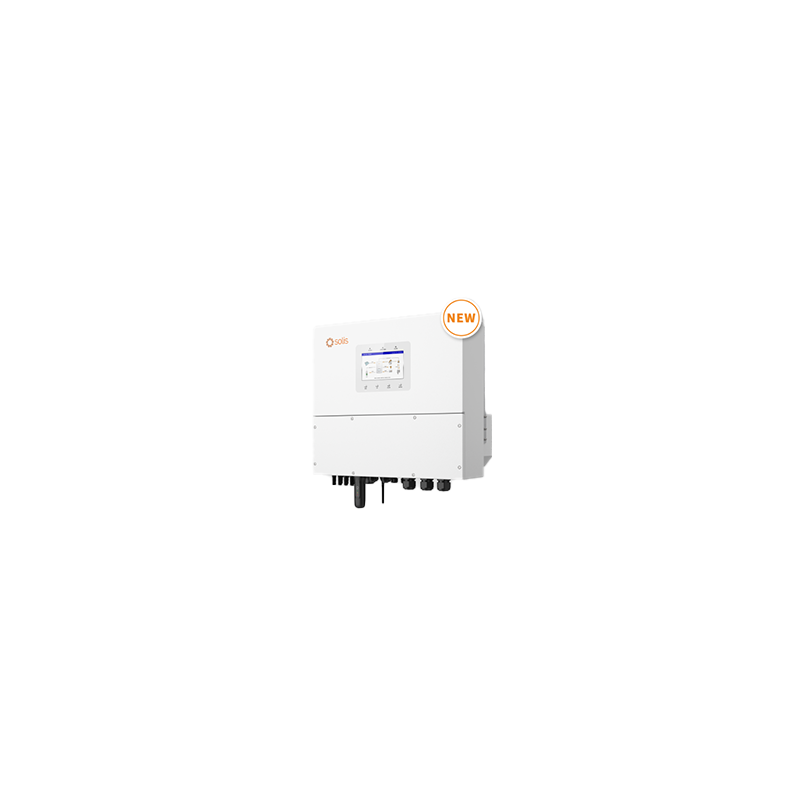

S6 20 kW Three Phase Hybrid High Voltage Inverter
€2,687.62
VAT included
Quantity
43 Items

Ask about the product on WhatsApp
Description

Features:

  • Integrated 4 MPPTs for multiple array orientations
  • Up to 50A max charge/discharge current
  • String current up to 20A, perfectly match large current modules
  • 10 second 200% surge power backup overload capability
  • Supports Max 6 pcs in parallel
  • Up to 200% DC oversizing
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
  • Supports peak shaving control in both "self-use" and "generator" mode
  • 6 customisable charge/discharge time settings
  • Automatic UPS switching
  • Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Note: Including 3 current sensors for direct connection to the inverter

Product Details
Solis
SOL-S6-EH3P20K-H
43 Items
Supplier Part No:
S6-EH3P20K-H (Display)
Weight:
53 kg
Rated Power:
20,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
160 V
DC Shutdown Voltage:
1,000 V
Max Input Voltage:
1,000 V
Max DC Power:
40,000 W
Max AC Power (5 Minutes):
20,000 W
Surge AC Power (1 Second):
22,000 W
Max DC Current:
96 A
Max DC Inputs:
6
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.7 %
Transformer:
none
MPPT Quantity :
4
Has Integrated DC Switch:
No
Warranty:
5 years
