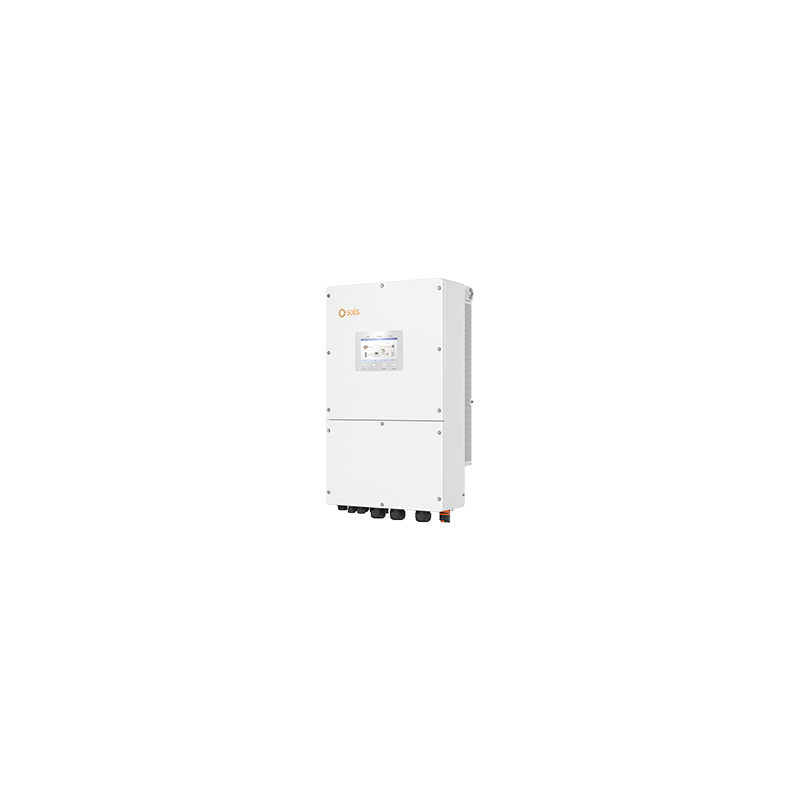

SOL-S6-EH3P40K-H

Introducing the new Solis S6-EH3P(30-50)K-H Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, has four integrated MPPTs with a string current capacity of up to 20A – ensuring unmatched power delivery. Whether for on or off-grid applications, the S6-EH3P(30-50)K-H series supports parallel operation of up to six units, with a backup port capable of supporting 1.6 times overload for short durations. This latest range compatible with an array of batteries, thanks to its wide voltage range, and offers peak shaving control in both "self-use" and "generator" modes.

Features:

• Allowable PV of up to 80kW, on the 180-1000V MPPT.
• 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
• Supports Grid and Generator AC inputs.
• Parallel up to 6 x inverters for up to 300kW of back-up load.
• Battery Charge and Discharge current of up to 140A.
• UPS transfer time of less than 10ms.
• 160% surge power for 2s to accommodate inductive loads.
• Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
• LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
• Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
• Current transformer ESCT-T50-300A/5A included in product packaging
