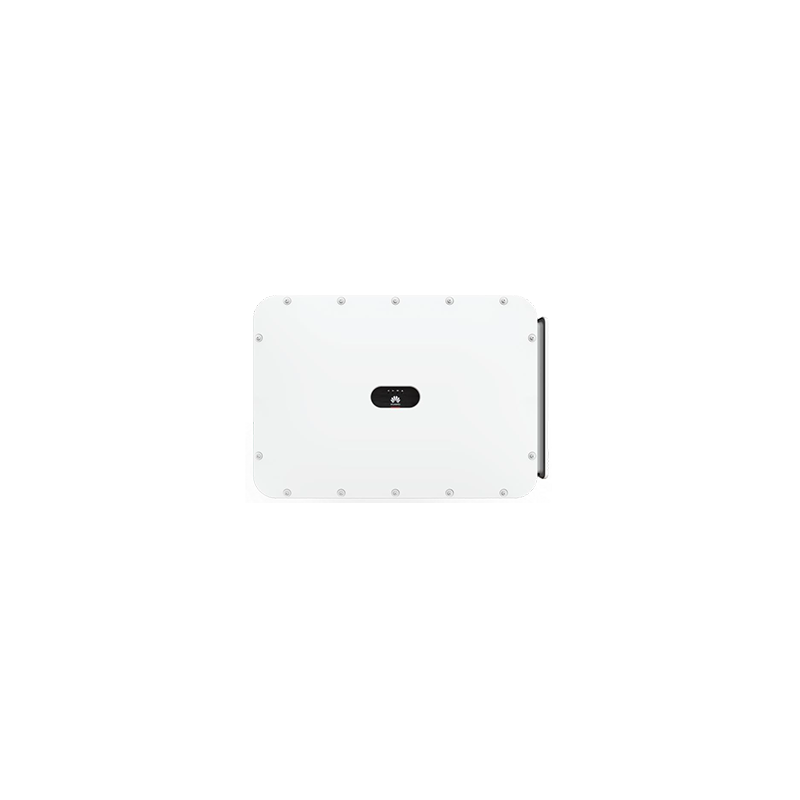

SUN5000-150K-MG0, string inverter

The 150K-MG0 closes another gap in Huawei's broad portfolio. With connection to the 400 volt low-voltage grid in accordance with the current VDE-AR-N 4105 standard, integrated AC + DC overvoltage protection and AFCI arc detection. The full optimisation of the SUN5000 series also enables monitoring and safety management at module level. Cost-efficient double optimisers with up to 1300 Wp enable a wide range of high-performance modules to be used.

Product advantages:

? Optimisation and monitoring at module level

? Cost-efficient design with MERC double optimisers 1100W-P and 1300W-P

? Integrated AFCI arc detection

? AC + DC overvoltage protection type 2

Product features:

? AC power: 150.0 kW

? AC connection: 400V, 3-phase

? DC input voltage: 1100 V

? DC input current: 66 A total

? DC connections: 12

? DC connector: Amphenol HH4

? Communication: RS485 (Wifi / 4G optional)

? Protection class: IP66

? Cooling: active

? Dimensions: 710 x 1000 x 395 mm (H x W x D)

? Weight: 102.0 kg

Compatible optimisers:

? Huawei MERC-1100W-P

? Huawei MERC-1300W-P
