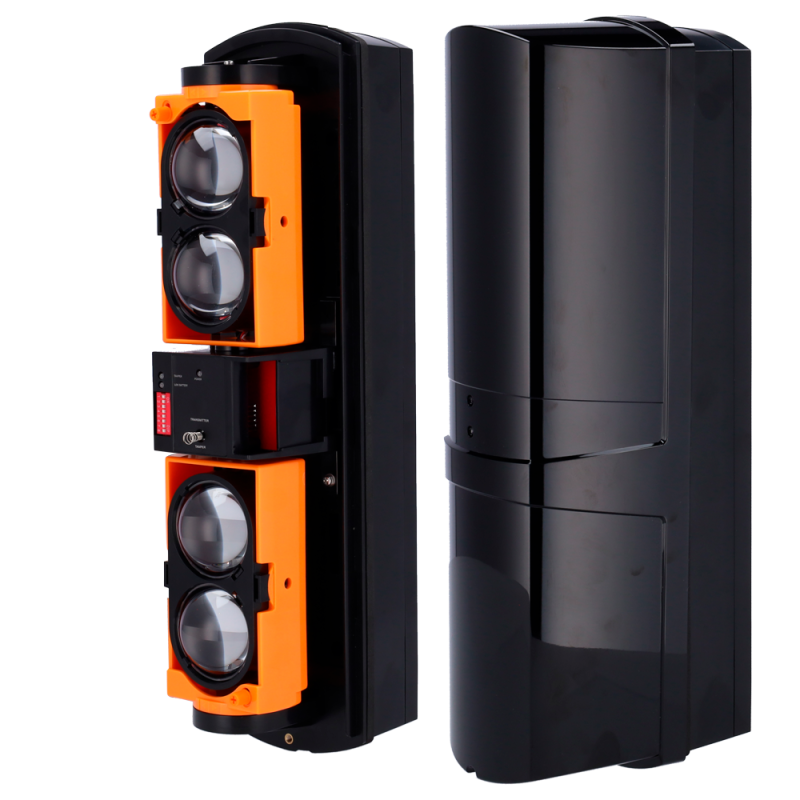

ABH-100W

The ABH-100W is a quad-beam infrared barrier designed for perimeter security applications, providing accurate and reliable detection both indoors and outdoors. Its maximum detection range is 300 meters indoors and 100 meters outdoors, adapting to different protection needs.

This wireless device is compatible with Ajax Transmitter or DoorProtect modules, facilitating integration into existing alarm systems. Lenses are horizontally ±90° and vertically ±10°, adjustable for optimal alignment during installation. In addition, it has a DIP switch for programming and offers four working frequencies, ensuring a flexible configuration adapted to each environment.

The ABH-100W incorporates a double tamper protection with tamper (front and rear) that protects against unauthorized tampering, guaranteeing the integrity of the system. Its robust and resistant design, with IP65 certification, makes it an ideal solution for perimeter protection in various applications.

• Infrared barrier with quadruple beam for outdoor use
• Wireless
• Maximum detection transmitter / receiver 300 m (interior) and 100 m (exterior)
• Quadruple adjustable lens
• Horizontal: 180º (±90º) / Vertical: 20º (± 10º))
• Function AND/OR
• DIP Switch for programming
• 4 work frequencies
• Double tamper tamper (front and rear)
• Battery operation
• Space compatible with Ajax Transmitter or DoorProtect
