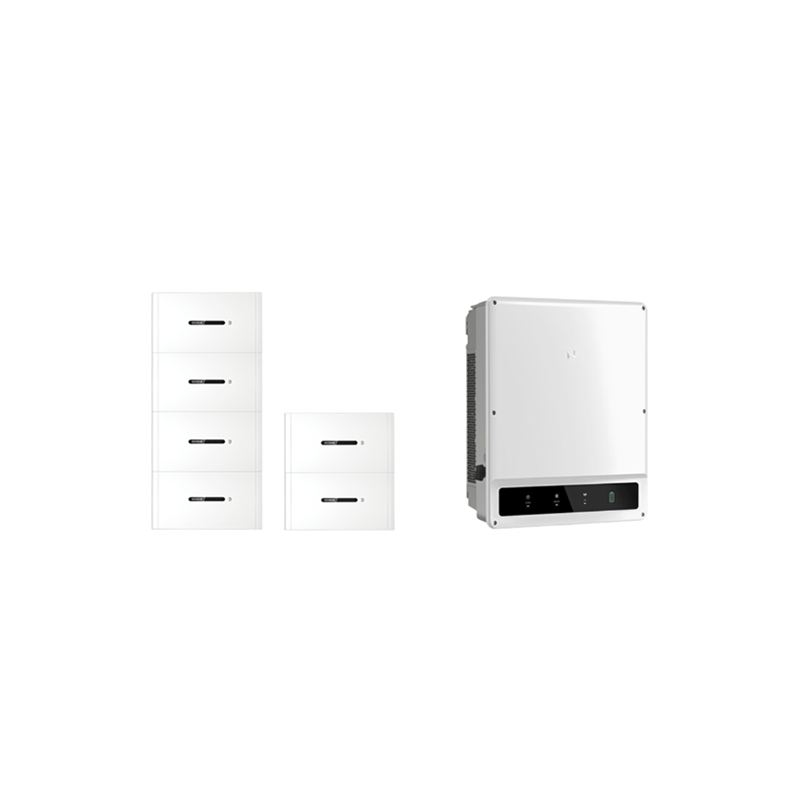

Lynx D30.0-10 + GW25K-ET

The mid-range power classes of the Goodwe ET Hybrid series, from 15 to 29.9 kW, are a real pleasure to use with the new Lynx D storage system. Quick and easy installation or retrofitting is possible thanks to the BMS integrated into the module. With up to 8 batteries, 40.0 kWh of usable capacity is easily achievable. Depending on the power class of the ET Hybrid, this can also be achieved at each of the 2 storage connections. These boast 17 amps per string connection, 38 amps per MPP tracker, and 50 amps of charging current per battery input. They also feature a powerful backup UPS function with a switching time of < 10 ms. Goodwe even offers peak shaving as an option. The application range thus extends from residential to small commercial systems.

Product advantages:

? Emergency power with UPS function < 10 ms

? 38 A input current per MPPT

? Unlimited expansion thanks to integrated BMS

? Up to 8 storage elements in the system (40.0 kWh)

? Certified battery safety according to VDE 2510-50

System product features:

? AC power: 25 kW

? Number of MPPTs: 3

? AC connection: 3-phase

? Storage connections: 2

? Communication: WiFi, RS485

? Protection class: IP66

? Cooling: active

? Dimensions: 660 x 520 x 220 mm (HxWxD)

? Weight: 54.0 kg

? Energy meter and WiFi LAN kit included with inverter

Storage product features:

? Battery capacity (usable): 30.0 kWh

? Expansion time window: unlimited

? System configuration: 1 to 8 units

? Cell chemistry: LFP

? Nominal voltage: 320 - 480 V

? Communication: CAN

? Cooling: Passive

? Protection class: IP66

? Installation: Floor (wall mounting optional)

? Dimensions: 800 + 1560 x 700 x 170 mm (H x W x D)

? Weight: 52.0 kg per module

? Warranty: 10 years

Conclusion:

The new, powerful combination from Goodwe. Installation is a pleasure.

Scope of delivery:

? 1 x Goodwe GW25K-ET hybrid inverter, including meter + Wi-Fi LAN kit (item 0159120)

? 6 x Goodwe Lynx D 5.0-10 storage modules (item 0158717)

? 2 x Goodwe Lynx D stand (item 0158718)
