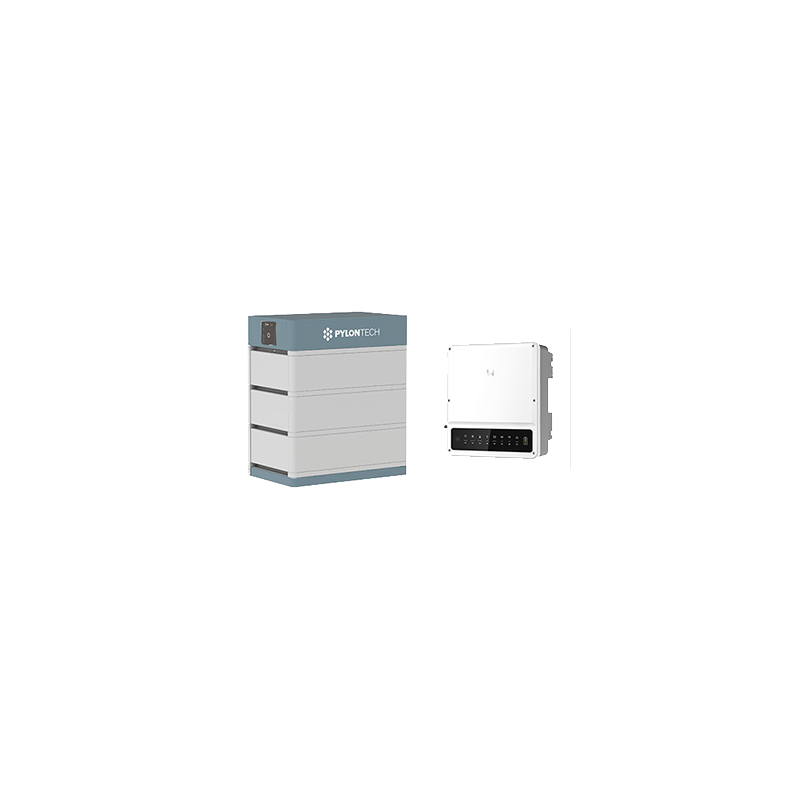

Pylontech Force H1 10.1 + GW5000N-EH

In addition to a DC input current of 16 amps, the EH series also boasts a genuine, uninterruptible UPS function for the backup connection. This means that even sensitive consumers can be operated carefree in any mains situation. Combined with the Force-H1 high-voltage series from Pylontech, this is a powerful system for home use.

Product advantages:

? Emergency power with UPS function < 10ms

? 16 A input current per MPPT

? Energy meter included with inverter

? Storage can be retrofitted at any time up to 23.6 kWh

Product features System:

? AC power: 5.0* kW

? Number of MPPT: 2

? DC overvoltage protection: Type 2

? AC connection: 230 V, 1-phase

? Communication: Wifi, Ethernet (optional), RS485, CAN

? Protection class: IP65

? Cooling: passive

? Dimensions: 354 x 433 x 147 mm (W x H x D)

? Weight: 17.0 kg

*limited to 4.6 kVA in accordance with VDE-AR-N 4105

Product features Storage:

? Battery capacity (usable): 10.1 kWh

? Extension window: up to 2 years

? Cell chemistry: LFP

? Nominal voltage: 144.0 V

? Protection class: IP55

? Dimensions: 700 x 600 x 380 mm (H x W x D)

? Weight: BMS + base: 14.0 kg, 3 x storage units 35.0 kg each

Conclusion:

Good manufacturer - good combination.

Scope of delivery:

? 1 x GW5000N-EH hybrid inverter, incl. meter (item 0152932)

? 1 x Pylontech Battery Management System (item 0152522)

? 3 x Pylontech Force-H1 storage module (item 0150255)
