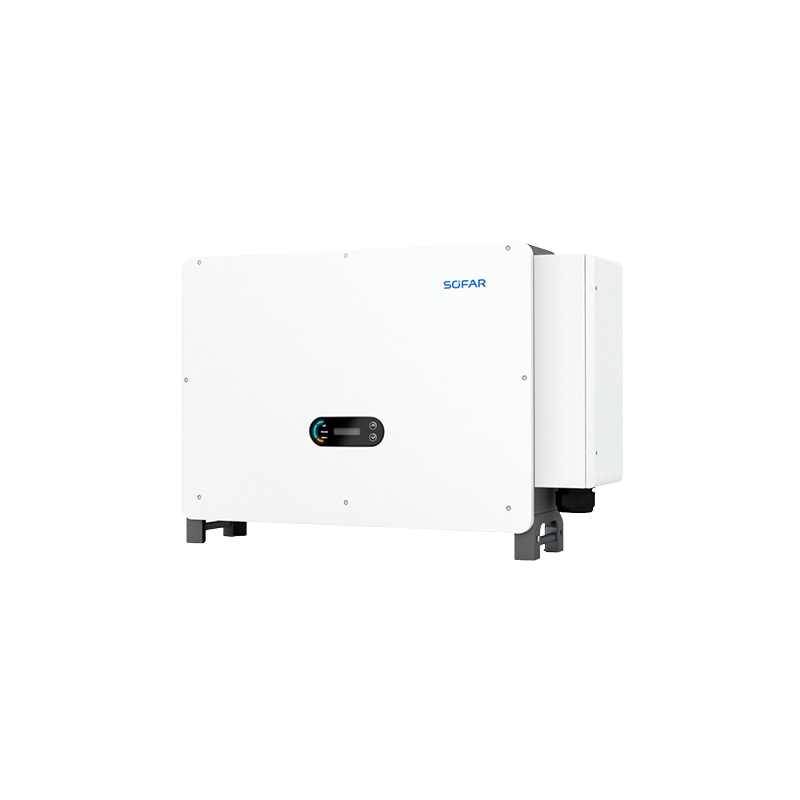

100KTLX-G4

Our newest addition to the inverter segment, Chinese manufacturer Sofar Solar, is launching a full-fledged product range. The project inverters of the KTL series shine with a wide voltage range for high-performance module generations. Integrated AC + DC overvoltage protection, characteristic curve measurement and shadow management are part of the standard equipment.

Product advantages:

? 40A input current per MPPT

? Wide MPPT voltage range from 180 to 1000 V

? Integrated overvoltage protection AC / DC type II

? U-I characteristic scan function

? 10 year product warranty

Product features:

? AC power: 100 kW

? Number of MPPT: 10

? DC disconnect switch: integrated

? Connection phases: 3

? Interfaces: RS485, Wifi, Bluetooth, Ethernet (optional with LAN dongle),

   4 x digital in (FRE)

? Connector plug: MC4

? Protection class: IP 66

? Cooling: active

? Dimensions: 970 x 695 x 325 mm (HxWxD)

? Weight: 75.0 kg
