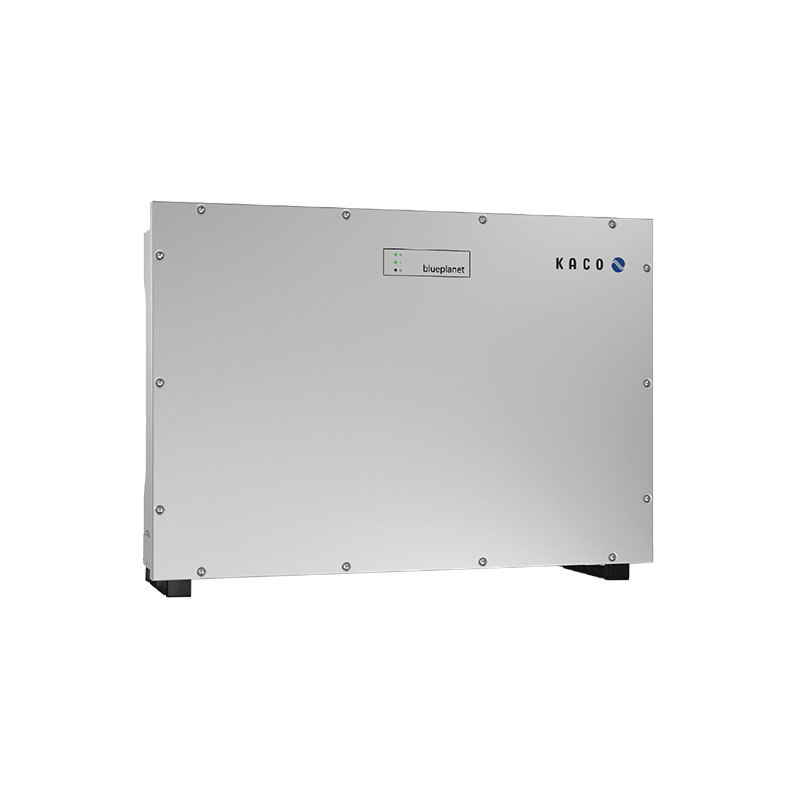

blueplanet 125 NX3 L M10, version L

Kaco has now equipped all new devices in the M5, M8 and M10 series with a multi-MPP tracker concept. This allows the module strings to be connected directly to the inverter. Complex combiner boxes are therefore no longer required. With up to 30 A input current per tracker, the devices in the M8 + M10 series are ideally equipped for current module types. Overvoltage protection with replaceable elements on the AC + DC side is also on board.

Product advantages:

? New multi-MPPT concept

? Up to 30 A input current per MPPT

? V-curve analysis

? Overvoltage protection: DC type 1+2, AC type 2

? AFCI arc detection

Product features:

? AC power: 125.0 kW

? AC connection: 400 V, 3-phase

? Number of MPPT: 10

? DC connector: Phoenix Contact Sunclix

? Overvoltage protection: DC type 1+2, AC type 2 (interchangeable)

? AFCI arc fault detection: yes - only for version L

? Communication: LAN, RS485, WLAN (opt. via stick)

? Protection class: IP66

? Cooling: active

? Dimensions: 740 x 1023 x 330 mm (H x W x D)

? Weight: approx. 85.0 kg
