Solis

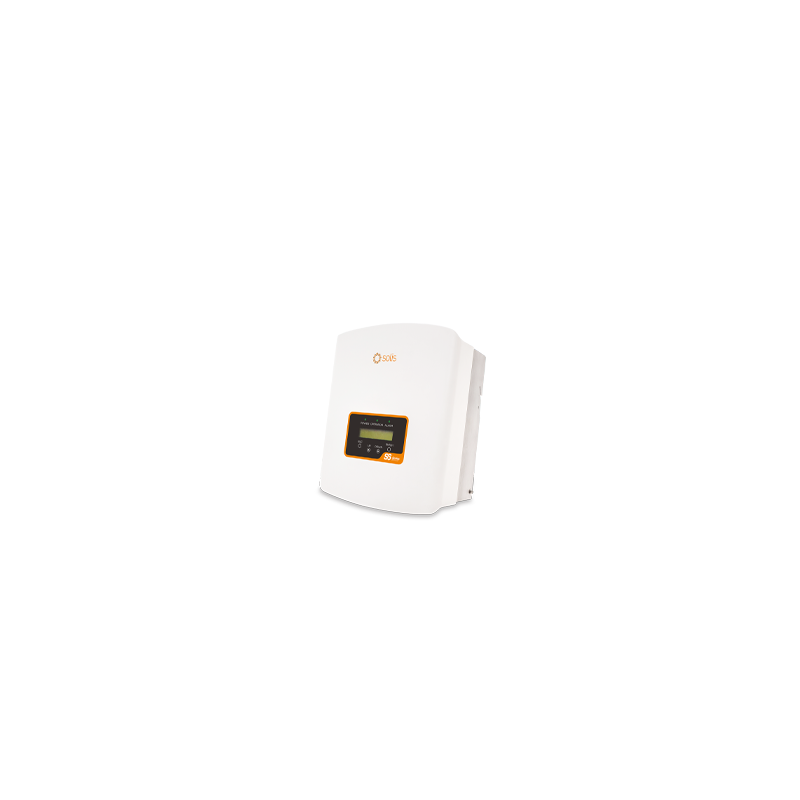

S6 Mini 3,6kW 1MPPT 1PH Inverter - with DC isolator
€46,604.36
VAT included
Quantity
Op voorraad bij leverancier (levertijd 5-10 werkdagen)
16 Items

Ask about the product on WhatsApp
Description

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

Product Features

  • Super high frequency switching technology with maximum efficiency of 97.3%
  • Max PV Power of 5.4kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 500V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

Product Details
Solis
SOL-S6-GR1P-3.6K-M-EU
16 Items
Supplier Part No:
S6-GR1P3.6K-M
Weight:
7.7 kg
Rated Power:
3,600 W
Min PPT Voltage:
90 V
Max PPT Voltage:
500 V
DC Startup Voltage:
90 V
DC Shutdown Voltage:
80 V
Max Input Voltage:
600 V
Max DC Power:
5,400 W
Max AC Power (5 Minutes):
3,600 W
Surge AC Power (1 Second):
3,600 W
Max DC Current:
19 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
1
Euro Efficiency:
96.8 %
Transformer:
none
MPPT Quantity :
1
Has Integrated DC Switch:
Yes
Warranty:
10 years
