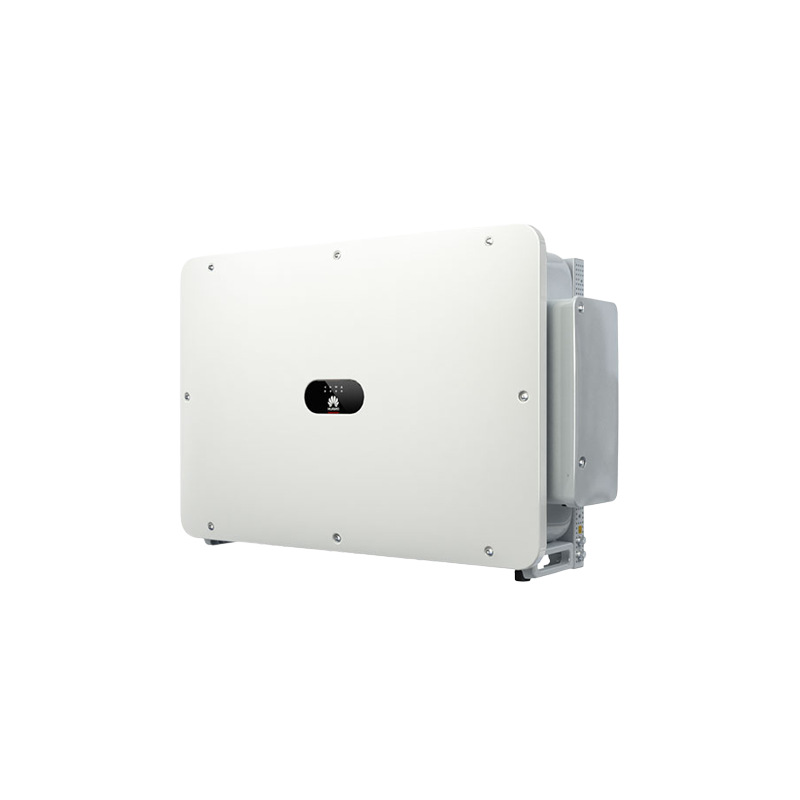

SUN2000-330KTL-H1
  • SUN2000-330KTL-H1

SUN2000-330KTL-H1

0161876
Huawei
SUN2000-330KTL-H1
€11,099.69
VAT included
Quantity
41 Items

Ask about the product on WhatsApp
Description
Only suitable for connection to the medium-voltage grid (nominal operating voltage = 800V).

Communication with the internet via the Smart Logger 3000A01EU (0133261) or with 4G/3G/2G via the 4G dongle (0131549).

The Smart Logger/dongle is not included in delivery!

The communication connector is not included in delivery. If required, the accessory kit 02233DXX (Krannich item 0144466) must be ordered separately.

With up to 65 amps of input current, 6 MPP trackers, and a range of additional features, Krannich would call it "a beautiful box with power." These include surge protection on the AC and DC sides as well as smart I-V characteristic curve measurement. Ideal prerequisites for demanding applications in the commercial segment with grid connection at the 800 V level.

Product advantages:
? High DC input current
? Smart I-V characteristic curve measurement
? Integrated AC+DC surge protection Type 2

Product features:
? Nominal AC power: 300.0 kW
? Feed-in phases: 3
? AC grid voltage: 800 V
? Number of MPPTs: 6
? Max. DC input voltage: 1500 V
? DC surge protection: Type 2
? AC surge protection: Type 2
? DC connector type: Stubli MC4 ECO2
? Communication: RS485, MBus, optional 2G / 3G / 4G (via 4G dongle)
? Protection class: IP66
? Cooling: Active
? Dimensions: 732 x 1048 x 395 mm (H x W x D)
? Weight: 112.0 kg
Product Details
Huawei
0161876
41 Items
