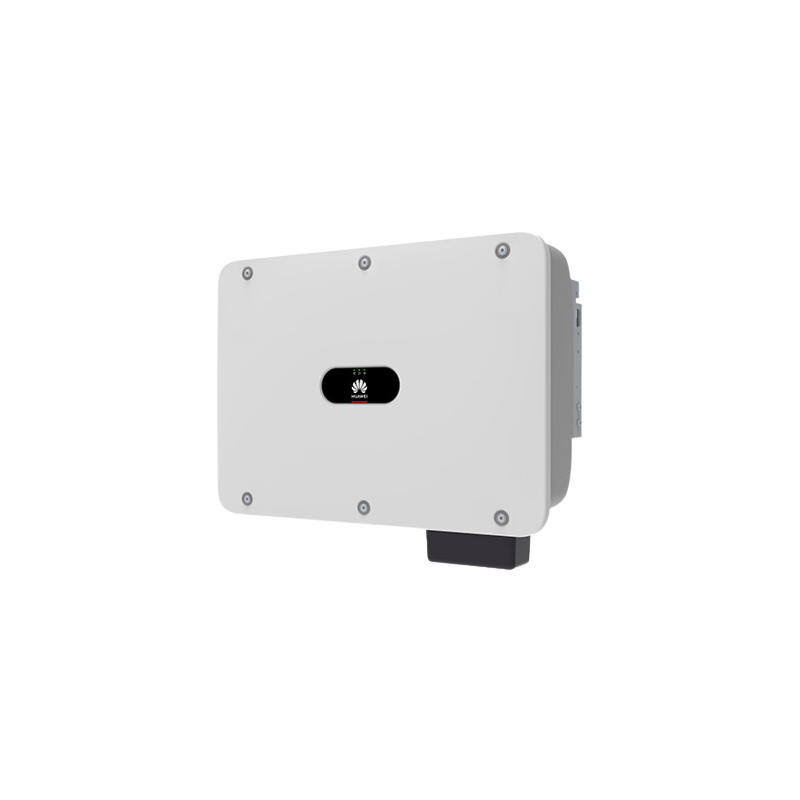

SUN2000-50KTL-M3
  • SUN2000-50KTL-M3

SUN2000-50KTL-M3

0162326
Huawei
SUN2000-50KTL-M3
€3,563.74
VAT included
Quantity
60 Items

Ask about the product on WhatsApp
Description
A communication interface (WLAN-FE / 4G dongle) is not included in the scope of delivery. This must be purchased separately depending on the required version.
With up to 30 amps of input current, four MPP trackers, and a range of protection and communication features, Krannich would call it "a beautiful box with power." The SUN2000-M3 series from Huawei can also be optionally equipped with Huawei Optimizer. Both partial and full optimization are possible. Ideal conditions for demanding applications.

Product advantages:
? High DC input current
? Integrated DC surge protection Type 1+2
? Compatible with SUN2000 optimizers*

Product features:
? AC rated power: 50 kW
? Feed-in phases: 3
? AC grid voltage: 400 V
? Number of MPPTs: 4
? Max. DC input voltage: 1100 V
? DC surge protection: Type 1+2
? AC surge protection: Type 2
? AFCI arc detection: yes
? DC connector type: Amphenol Helios H4
? Communication: RS485, optional Wi-Fi + LAN / 4G (via dongle)
? Protection class: IP66
? Cooling: passive
? Dimensions: 640 x 530 x 270 mm (H x W x D)
? Weight: 43.0 kg

*Compatible optimizers: SUN2000-450-P2, SUN2000-600W-P, MERC-1100W/1300W-P
Product Details
Huawei
0162326
60 Items
