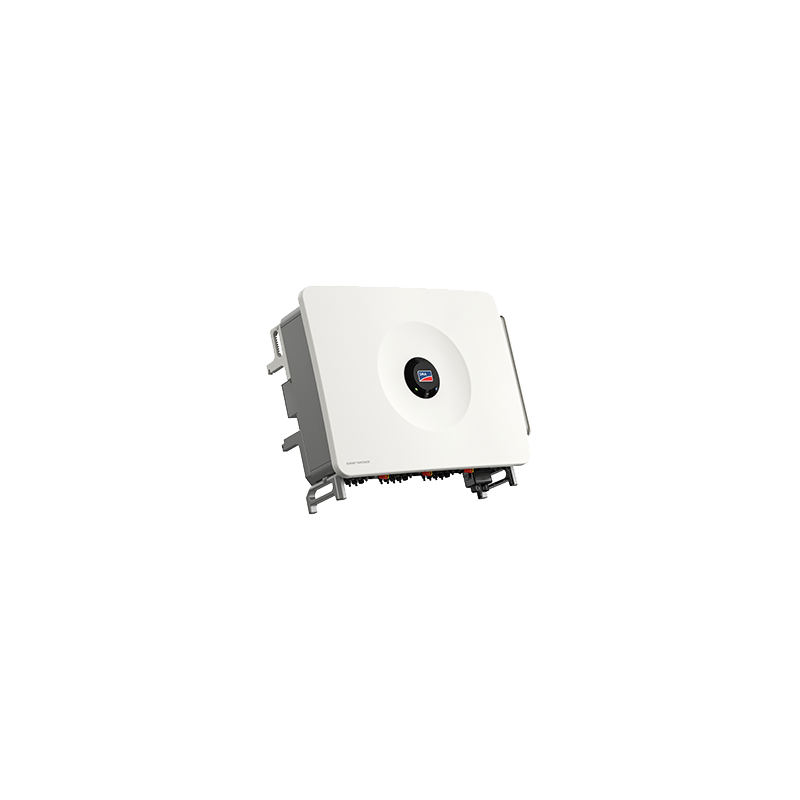

Sunny Tripower 125-70, string inverter

The Sunny Tripower 125 is the new major building block for the SMA Commercial Energy Solution.

Practical key data and comprehensive equipment enable highly efficient and economical systems in all application segments. From use as a single device to megawatt systems. The certification ranges from VDE-AR-N 4105 to 4110 and 4120. 12 MPP trackers, ArcFix arc detection, overvoltage protection, I-V characteristic curve - all optimized for function and safety.

Product advantages:

? 30 A input current per MPPT (15 A per string connection)

? Arc protection function SMA ArcFix

? DC type 1+2 and AC type 2 overvoltage protection

? Intelligent I-V generator diagnostics

? Control of the grid relays for central NA protection possible

? Side AC connection for ideal accessibility

Product features:

? AC power: 125.0 kW

? AC connection: 400 V, 3-phase

? Number of MPPT: 12

? Connections per MPPT: 2

? DC connector: SUNCLIX

? Communication: 2 x Ethernet, WLAN

? Interfaces: 4 x DI (for FRE), 2 x quick stop, multifunction relay

? Protection class: IP65

? Cooling: active

? Dimensions: 795 x 1020 x 360 mm (H x W x D)

? Weight: 96.0 kg
