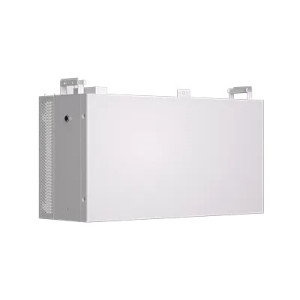

Home Battery LV 4.85 (WIDE) (only for DE/AT)
  • Home Battery LV 4.85 (WIDE) (only for DE/AT)

Home Battery LV 4.85 (WIDE) (only for DE/AT)

0162435
SolarEdge
Home Battery LV 4.85 (WIDE) (only for DE/AT)
€2,302.40
VAT included
Quantity
228 Items

Ask about the product on WhatsApp
Description
Only for Austria and Germany.
This model is not compatible with the Home Battery 4.6.
Connection to the SolarEdge RWS Hybrid inverter is not possible.
The cover, and base are included in the accessories kit and must be ordered separately.
The powerhouses of the Home Battery LV 4.85 series are compatible with the 3-phase RWB hybrids. They are expandable indefinitely and reliable in every application. With up to 4 storage modules, up to 19.4 kWh of usable capacity can be achieved. Ideal for all residential applications.
Product advantages:
• All components from a single source
• Reliable compatibility thanks to a single manufacturer
• Easy installation of the entire system via SetApp
Product features:
• Battery capacity (usable): 4.85 kWh
• Expansion time window: unlimited
• Cascadable: up to 4 storage modules
• Cell chemistry: LFP
• Nominal voltage: 44.8 - 57.6 V
• Protection class: IP65
• Dimensions: 370 x 725 x 245 mm (H x W x D)
• Weight: 50.5 kg
• Cooling: passive

Key technical data

Dangerous goods transportation category 2
Dangerous goods description LITHIUM ION BATTERIES
Dangerous goods Weight (net) (kg) 50.500
Tunnel restriction code (AND)
Classification code M4
Dangerous goods class 9
Dangerous goods packaging type 4G
A No. 3480

Product Details
SolarEdge
0162435
228 Items
Nominal Capacity (Ah) 100.00
Protection degree IP65
Min. temperature ambient (°C) -10
Capacity extendable later yes without restriction
Battery cell chemistry LFP
Usable capacity (kWh) 4.85
Nominal voltage DC (V) 48.00
Battery voltage Low Voltage
