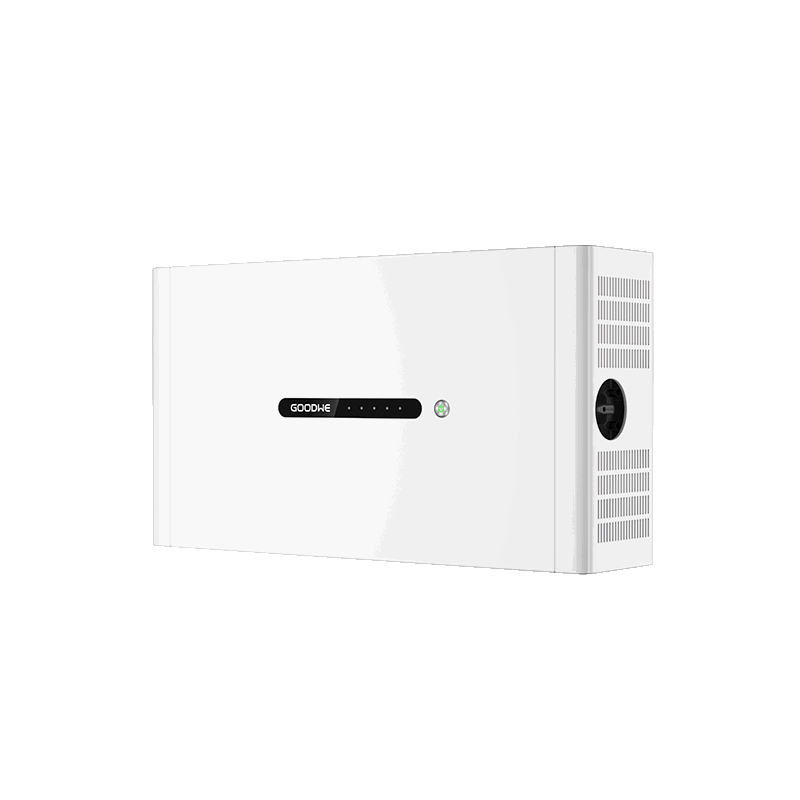

Lynx D 5.0-10

With the new Lynx D series, Goodwe is bringing a new player to its residential and small-commercial storage portfolio. In addition to higher capacity per module and system, the integrated DC/DC converter enables the most flexible applications, starting with just one battery per inverter. The BMS is now also included in every storage module, allowing for optimal energy management and unlimited retrofitting. This eliminates the need for time-consuming preparation before adding an element. With up to 8 modules, a usable capacity of 40.0 kWh can be achieved.

Product advantages:

? High voltage level per module allows for flexible applications

? Unlimited expansion thanks to integrated BMS

? Up to 8 storage modules with a total of 40.0 kWh

Product features:

? Battery capacity (usable): 5.0 kWh

? Expansion time window: unlimited

? System configuration: 1 to 8 units

? Charging power: 3.0 kW

? DC connector type: HD (version -08) *

? Cell chemistry: LFP

? Nominal voltage: 320 - 480 V

? Communication: CAN

? Cooling: passive

? Protection class: IP66

? Installation: Floor or wall

? Dimensions: 380 x 700 x 170 mm (HxWxD)

? Weight: 52.0 kg

? Warranty: 10 years

*The connectors required for the complete installation are sometimes included in the required mounting kit for wall or floor mounting. This must be ordered separately.

Compatible inverter series: ET G2, ET Plus+, ET 15-30, ET 40-40, BT, EH Plus+, BH
