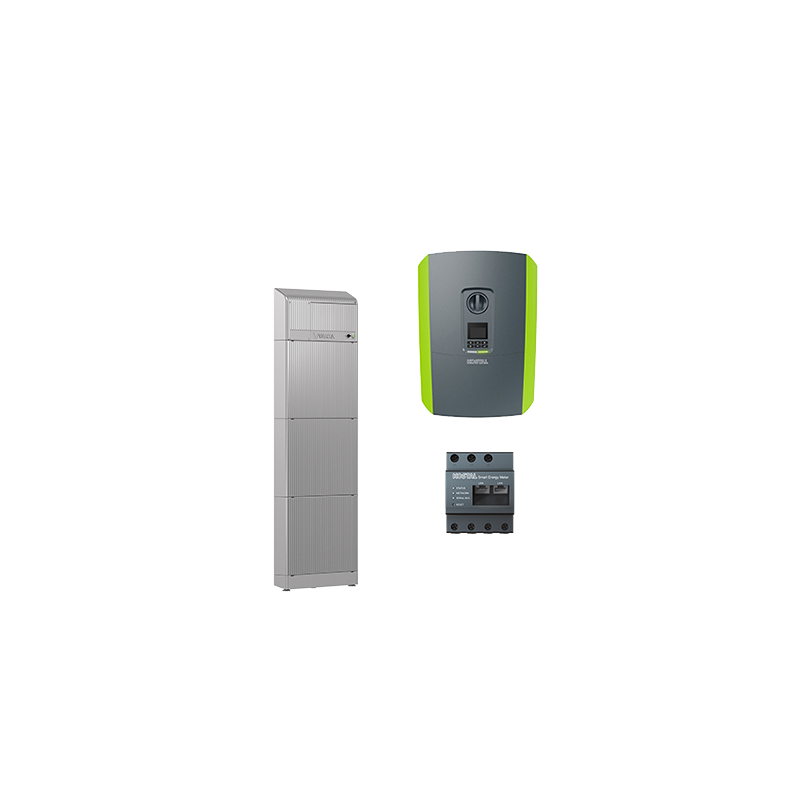

VARTA.wall 15 + Plenticore Plus 8.5 G2

This combination gets things moving. The proven Kostal Plenticore Plus G2 hybrids and the ultra-flat VARTA.wall high-voltage storage system. The Kostal hybrids of the G2 series shine with practical full equipment. With a depth of just 100 mm, the VARTA.wall is probably the flattest storage system on the market. In a stacked design with up to 4 modules on top of each other and 20 kWh of usable capacity, it fits behind almost any door. Plenty of potential for this fresh storage pair.

Product advantages:

? Powerful storage package

? Simple network connection with each other as a daisy chain

? Certified battery safety in accordance with VDE 2510-50

Product features System:

? AC power: 8.5 kW

? Number of MPPT: 2 + 1 (PV / Bat)

? DC input current: 13 A per MPPT

? AC connection: 3-phase

? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out

? Protection class: IP65

? Cooling: active

? Weight: 21.6 kg

Product features Storage:

? Battery capacity (usable): 15.0 kWh

? Storage type: High-voltage

? Nominal voltage: 302.4 V

? Extension time frame: 18 months

? System structure: 2 to 4 battery modules + BMS

? Cell chemistry: NCA

? Communication: CAN, RS485, Ethernet, WLAN

? Cooling: passive

? Protection class: IP55

? Dimensions: 1752 x 605 x 100 mm (H x W x D)

? Weight: BMS approx. 15.0 kg, storage 3 x 37.0 kg

? Warranty: 10 years

Activation via PLENTICOINs:

General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):

Activation of the storage function: 1 PLENTICOIN

Activation of the Wallbox Smart Features: 2 PLENTICOINS

Scope of delivery:

? 1 x Kostal Plenticore Plus 8.5 G2 hybrid inverter (item 0152314)

? 1 x Kostal KSEM G2 Smart Meter (item 0151118)

? 1 x VARTA.wall BMS (item 0154888)

? 3 x VARTA.wall storage module (item 0154887)
