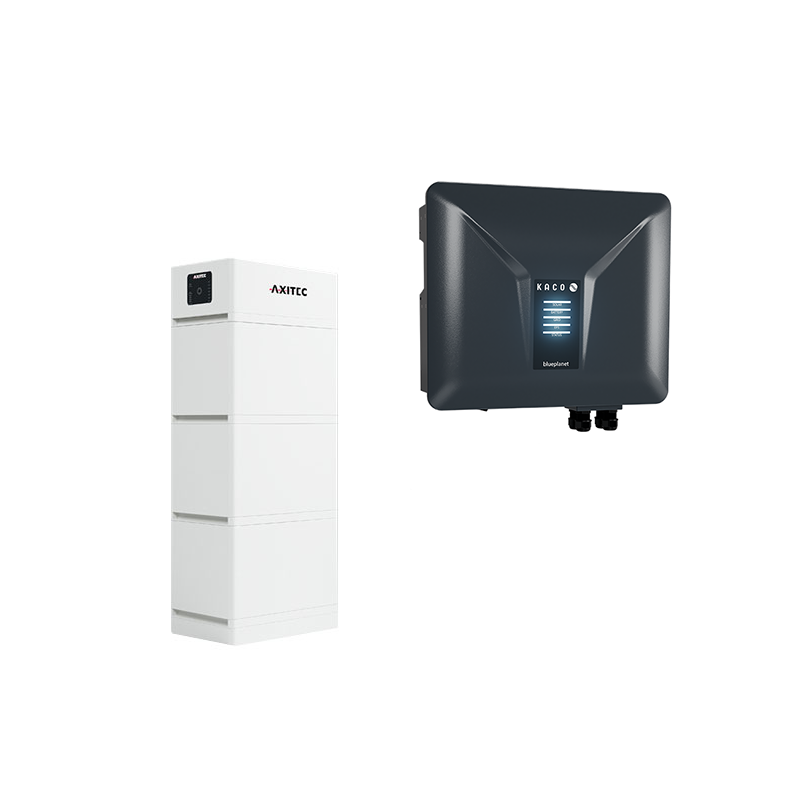

AXIstorage Li SV2 10.1 + blueplanet 10.0 NH3 M3

With the new NH3-M3 series, Kaco is introducing its new hybrid inverters in 3 performance classes from 8 to 12 kW. In addition to a module release of up to 200%, the devices received 3 independent MPP trackers for universal use. The integrated backup connection shines with a switching time <10ms to UPS level. Even the application as a pure off-grid system is approved. The high-voltage system from Axitec combined here is even certified according to VDE 2510-50 and offers compact storage power.

Product advantages:

? Hybrids in new, attractive performance classes

? 3 MPP trackers with 16A input current each

? Backup connection with <10ms switching time

? Backup and island operation without additional activation

? Storage in the proven stack concept

? Certified according to VDE 2510-50

Product features system:

? AC power: 10.0 kW

? Number of MPPT: 3

? AC connection: 400V, 3-phase

? Communication: Wifi, 4G, LAN, RS485, CAN

? Interfaces: 2 x DO, 4 x DI (FRE ?ber Kaco Powador protect)

? Protection class: IP66

? Cooling: passive

? Weight: 28.5 kg

? Dimensions: 545 x 530 x 205 mm (W x H x D)

? Included in delivery: 3 x transducers

Product features memory:

? Battery capacity (usable): 10.1 kWh

? Time window extension: 5 years

? Cell chemistry: LFP

? Rated voltage: 288.0V

? Protection class: IP55

? Dimensions: 1118 x 450 x 296 mm (HxWxD)

? Weight: BMS 12.0 kg, 3 x storage units 35.0 kg each

Conclusion:

This combination has the best conditions for flexible and reliable applications.

Scope of delivery:

? 1 x Kaco blueplanet hybrid 10.0 incl. CT's (article 0154928)

? 1 x AXIstorage Li SV2 BMS (Item 0152359)

? 3 x AXIstorage Li SV2 Energy Pack (Item 0150761)
