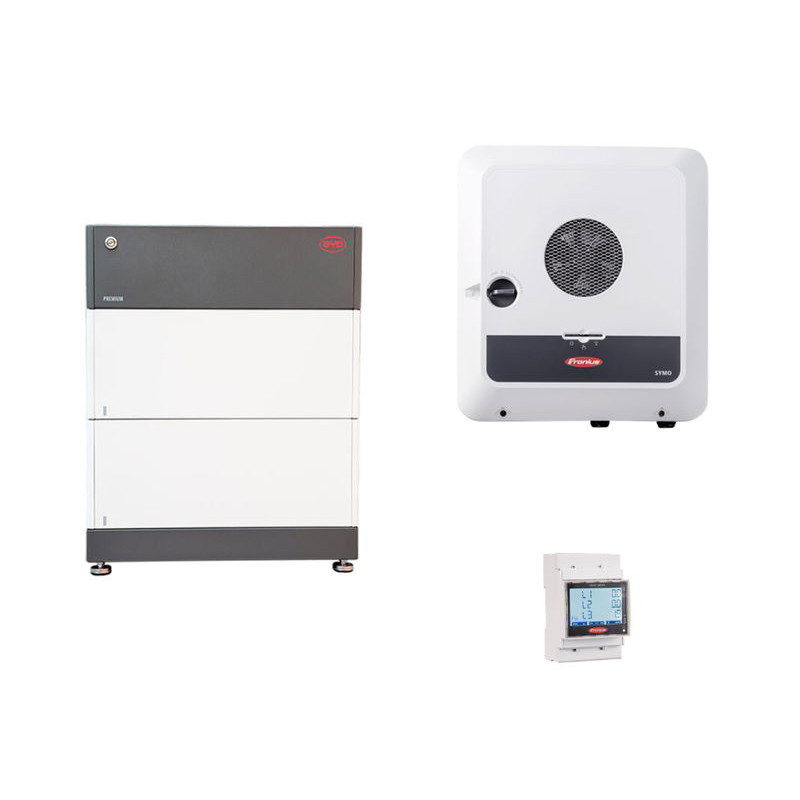

B-BOX HVS 5.1 (5.12 kWh) + SYMO GEN24 6.0 PLUS
Hoogspanningssysteem Lithium-ionbatterijopslag
Omschrijving
The Smart Meter included in the set does not have an interface for using dynamic electricity tariffs. If this function is required, please use the Fronius Smart Meter IP (article 0154145).
For the additionally required power cable (4 to 6mm?) a standard DB PV1-F solar cable (for example KBE) can be used.
A Cat6 communication cable is also required.
Not applicable in Finland, Denmark and Ireland.
The RJ45 termination plug for the data bus included in the scope of delivery must be finished on site. To do this, insert a wire bridge between pins 1 + 6 (viewed from above on the flat side of the plug with the pin contact surfaces, cable entry at the bottom, pins ascending from left to right) and crimp it. No actual resistor is required.
Note:
In the shopping cart, you have the option of removing individual components of the set from your order and replacing them with comparable products if necessary.
- usable capacity: 5.12 kWh
- nominal voltage: 204 V
- Max. Output current: 25 A
- Operating Voltage Range: 160-240 V
- ambient temperature: -10 ?C to +50 ?C
- interfaces: CAN/RS485
- round trip energy efficiency: >= 96 %
- certification: VDE2510-50 / IEC62619/ CEC / CE / UN38.3
- IP protection class: IP55
- Extend anytime / up to 3 identical systems parallel / 38.4 kWh usable
Set includes:
2x 0131385 (BYD B-BOX PREMIUM HVS Batteriemodul)
1x 0159471 (BYD battery control unit)
1x 0132171 (Fronius Symo GEN24 6.0 Plus)
1x 0151650 (Smart Meter TS 65A-3 F1)
Key technical data
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 117.700 |
| Tunnel restriction code | (AND) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
