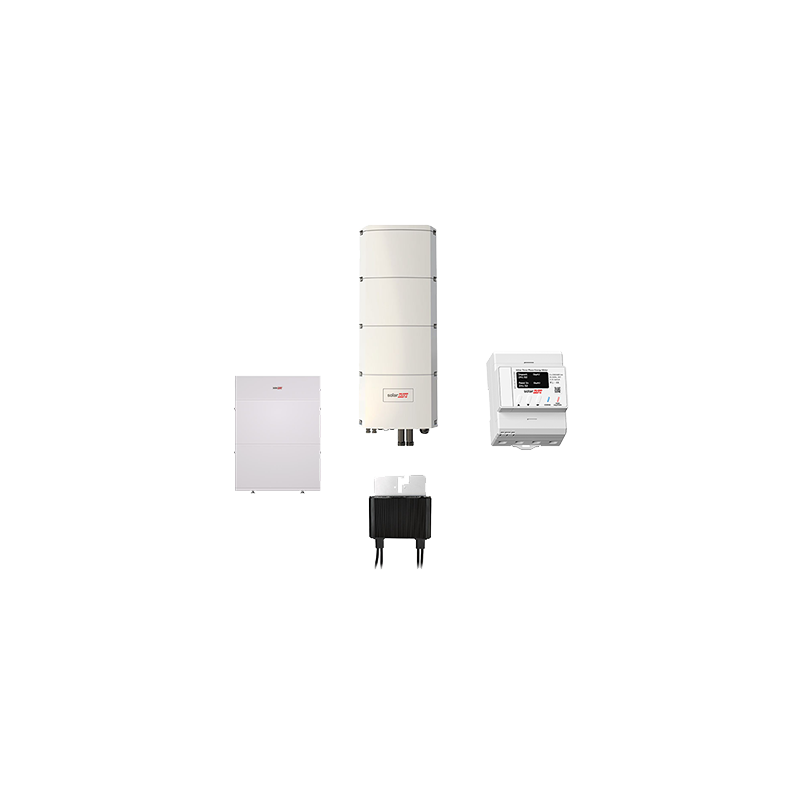

Home Battery LV (W) 9.7 + SE10K-RWB + 24x S440

The powerful Solar Edge Home Battery LV (W) series is the ideal complement to the 3-phase RWB hybrid inverters. The unique optimizer concept ensures maximum safety and performance. And in combination with the SolarEdge Backup Interface, backup power is also possible. The storage system can be expanded indefinitely and is reliable in every application. With up to 4 units, 19.4 kWh of usable capacity can be achieved. Ideal for all residential applications.

Product advantages:

? Unique optimizer concept

? Backup function (with backup interface)

? Expandable at any time

? Easy installation via SetApp

? Includes 24 optimizers

Product features System:

? AC power: 10.0 kW

? AC connection: 3-phase

? Communication: WLAN (antenna required), LAN, 2 x RS485

? Protection class: IP65

? Cooling: passive

? Dimensions: 907 x 316 x 192 mm (H x W x D)

? Weight: 37.0 kg

Product features Storage:

? Battery capacity (usable): 9.7 kWh

? Time window extension: unlimited

? Cascadable: up to 4 storage modules

? Cell chemistry: LFP

? Nominal voltage: 44.8 - 57.6 V

? Protection class: IP65

? Dimensions: 995 x 725 x 245 mm (H x W x D)

? Weight: approx. 108.0 kg

? Cooling: passive

Scope of delivery:

? 24 x SolarEdge Power Optimizer S440 (item 0144662)

? 1 x SolarEdge Inline Energy Meter (item 0148127)

? 1 x SolarEdge SE10K-RWB48BFN4 (item 0151151)

? 1 x Cable set Home Battery - RWB inverter (item 0151156)

? 2 x SolarEdge Home Battery LV 4.85 (W) storage module (item 0162435)

? 1 x SolarEdge Accessories Kit Home Battery LV 4.85 (W) (item 0162438)
